Brief introduction

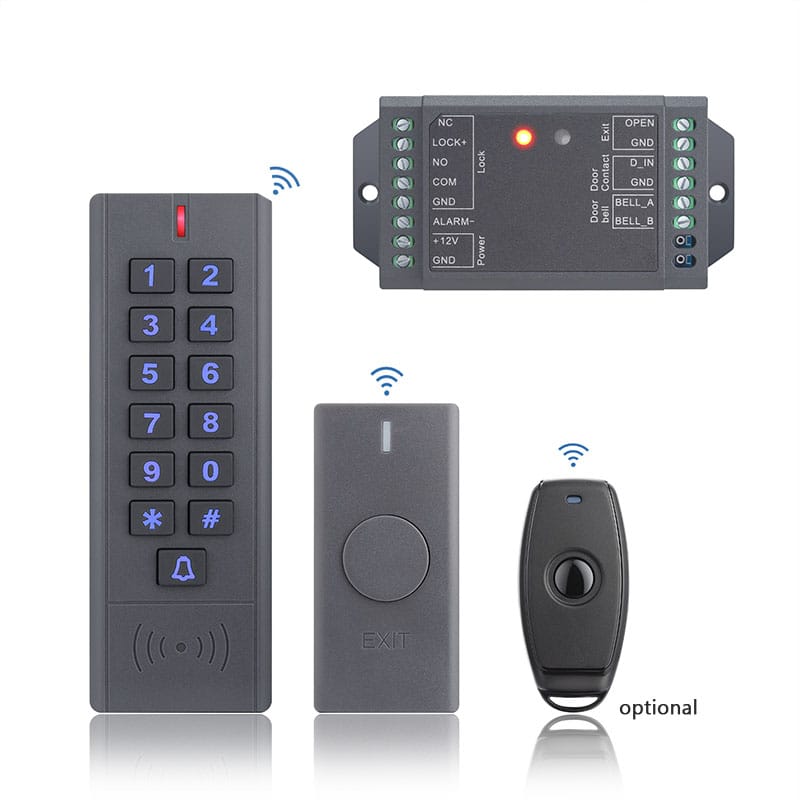

This ABS keypad access control kit adopt the 433Mhz wireless communication technology and TEA+rolling code encryption algorithm which is more secure.The relay is built-in the indoor controller.Even the outdoor keypad has been brokened,the door is safe.3 in 1 kit which is cost-effective.
Parameter
| Model | SK1 |
| Housing | Thickened ABS |
| Waterproof | IP67 |
| Power | Outdoor keypad:3pcs AAA batteries丨Exit button:CR2032 lithium battery (3V) |
| controller: DC12V±20% | |
| Input | EM 125Khz 丨 Mifare 13.56Mhz丨NFC213-216丨Mobile NFC丨PIN code(4-8 digits) |
| User capacity | 500 normal users + 100 temporary visitor users |
| Environmental | Temperature: -30℃~﹢60℃ |
| Humidity: 10%-98%RH丨controller & exit button 10%-88% | |
| Dimension | 187*150*55mm |
| Weight | 0.5kg |
Featured function
Temporary visitor user丨Anti-tamper丨Support switch mode and access mode
Door contact & external alarm & doorbell interface丨Esay installation & wiring
Model
- SK1-E EM 125Khz
- SK1-M Mifare 13.56Mhz丨NFC213-216丨Mobile NFC
Application
