Brief introduction

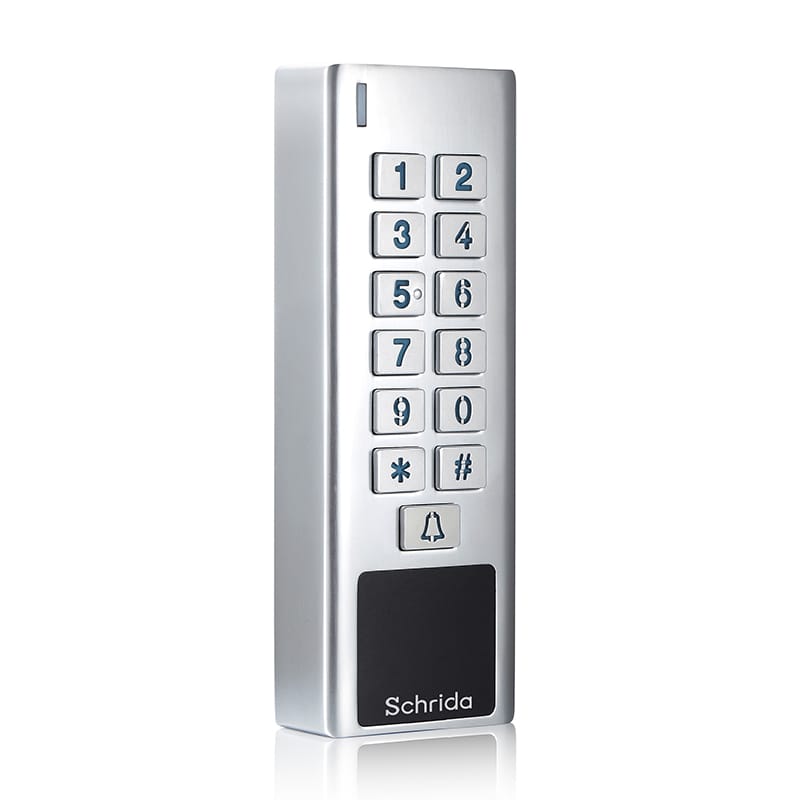

This new generation metal access control/reader with doorbell button conforms to waterproof IP67.The zinc alloy housing is anti-vandal and attractive.It has powerful functions like the smart control of the backlit light & buzzer/anti duress/anti-passback for single door/multi-user/switch mode door contact & external alarm interface/Reader mode to set the wiegand or PIN code output format by users…
Parameter
| Model | S8A ( EM & HID & Mifare ) |
| Housing | Zinc alloy |
| Waterproof | IP67 |
| Power | Wide range AC/DC10-30V |
| Input | EM/HID 125Khz 丨Mifare 13.56Mhz(UID 4 bytes,7 bytes,Plus) 丨4-6 digits PIN丨 Wiegand 26-37 |
| Output | Wiegand 26-37 丨PIN code 4 bit,8bit (ASCII)丨10 digtis virtual card number |
| Doorbell | Support |
| User Capacity | 2,000 |
| Environmental | Temperature: -40℃~﹢70℃ |
| Humidity: 10%-98%RH | |
| Dimension | 129*44*20mm |
| Weight | 0.45kg |
Featured function
Support Admin add/delete card 丨Add new users with the serial number cards丨Anti-duress
Anti-tamper alarm丨Switch mode & Access mode丨Door contact and External alarm interface
Doorbell button and external doorbell interface丨Reader mode丨Anti-passback for single door
Multi-user丨smart control of the keyboard light and buzzer
Application
