Brief Introduction

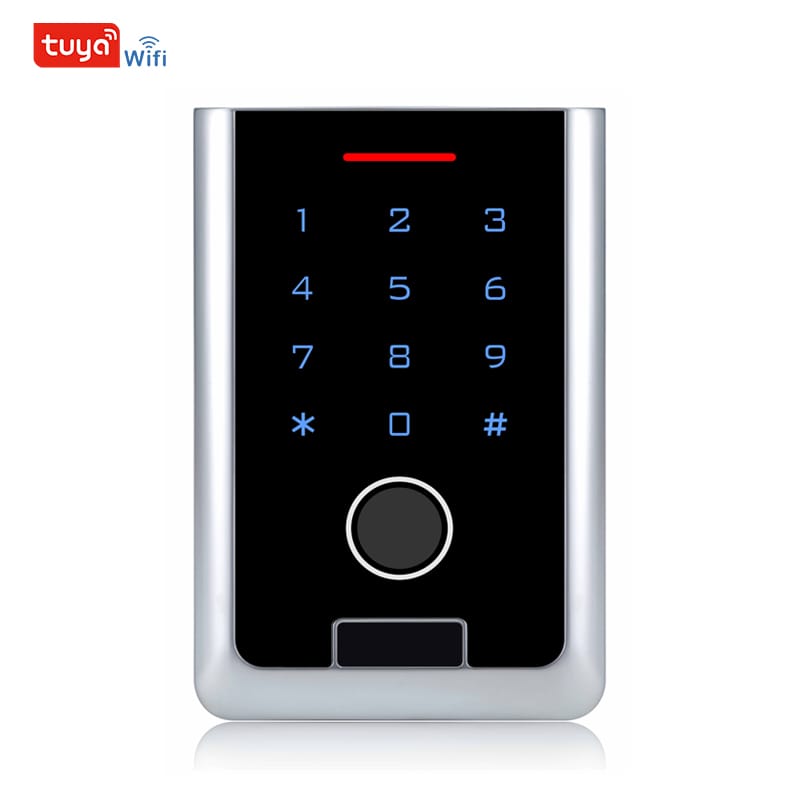

This new generation of Tuya app management WiFi fingerprint access control keypad/reader conforms to waterproof IP66.The zinc alloy metal case is anti-vandal and anti-explosion.Support multiple ways of authentication: fingerprint/card/PIN code/multi-user/temporary guest user.
Parameters
| Model | SF10-T |
| Housing | Metal case, touch screen |
| Waterproof | IP66 |
| Power | DC12V±25% |
| Input | EM 125KHz Wiegand 26丨Mifare 13.56MHz （Mobile NFC) Wiegand 26-44,56,58bit丨4-6 digits PIN |
| Output | EM Wiegand 26丨Mifare Wiegand 26-44,56,58 PIN code 4bit丨8bit丨virtual card number |
| User Capacity | 200 fingerprint users丨400 card users |
| Environmental | Temperature:-20℃~﹢60℃ |
| Humidity:10%-99% | |
| Dimension | 115*76*25mm |
| Weight | 0.65kg |
Featured functions

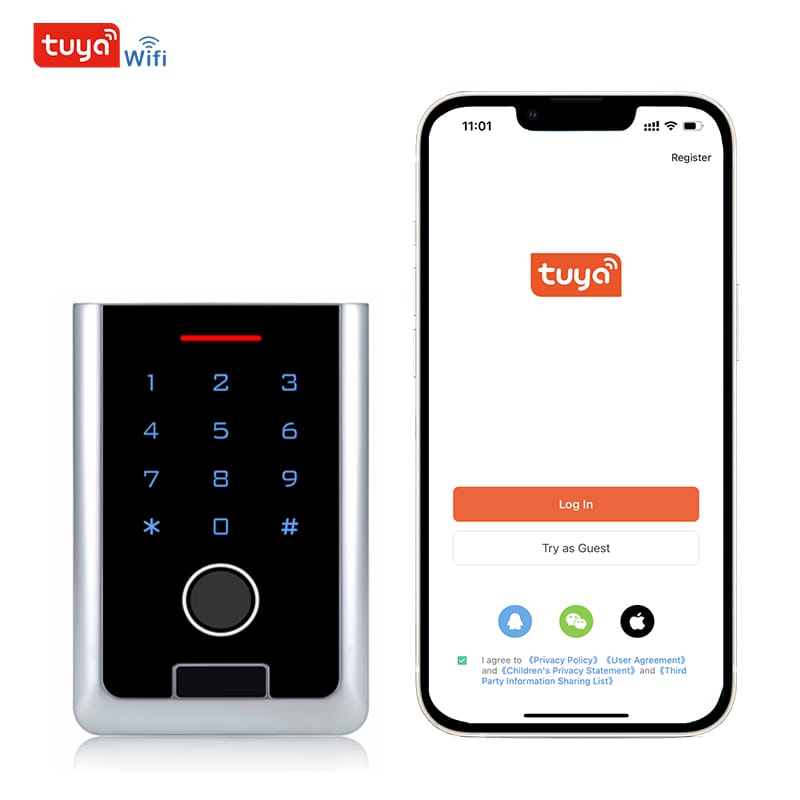

Smartphone management丨open remotely丨add/delete users by smartphone
door status remote monitoring丨2 anti-duress users丨10 temporary guest users(1-9 opening times)丨Interlock
2-9 multi-users authentication丨Sound & light can be set丨Card and PIN code丨Wiegand reader mode
Model
- SF10-T EM 125KHz
- SF10-T MF 13.56MHz(Mobile NFC)
