Brief introduction

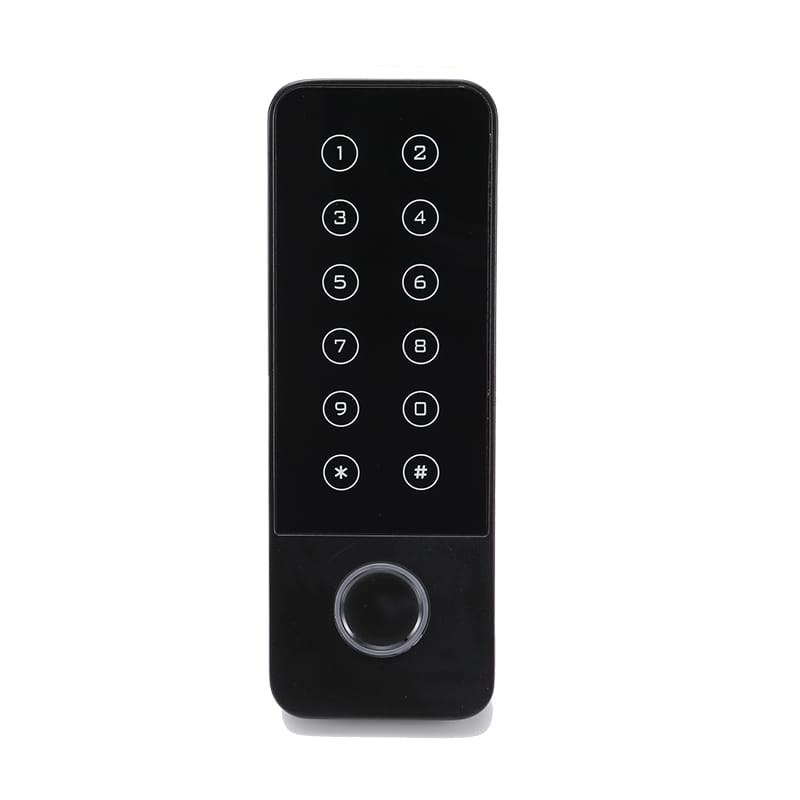

This new generation of touch screen access control keypad conforms to waterproof IP66. Zinc alloy housing,anti-vandal and anti-explosion.Supports proximity EM card 125KHz or/and Mifare 13.56MHz & 4-6 digits PIN code.Wiegand formats/Sound & led light mode
can be set by the users.
Parameter
| Model | S6 |
| Housing | Zinc alloy,high-end black paint |
| Waterproof | IP66 |
| Power | Wide range DC10-24V |
| Input | EM 125KHz丨Mifare 13.56MHz(UID 4 bytes,7 bytes,Plus) 丨 EM & Mifare |
| Wiegand format | Card Wiegand 26-44bit,56,58bit input/output PIN code Wiegand 4 bit,8 bit(ASCII),10 digits virtual card number |
| User Capacity | 3,000 |
| Environmental | Temperature: -40℃~﹢60℃ |
| Humidity: 10%-98%RH | |
| Dimension | 130×46×16mm |
| Weight | 0.65kg |
Main Features
Supports Admin card 丨Add new users with the serial number cards丨10 guest users
2-9 multi-user authentication丨Switch mode & Access mode丨Upload & download the data of card user
Card reader mode丨Buzzer sound & indicator light mode setting 丨Wiegand formats can be set by the users
Model
- S6-E EM 125KHz
- S6-M Mifare 13.56MHz
- S6-DM EM & Mifare
Application
