Brief Introduction

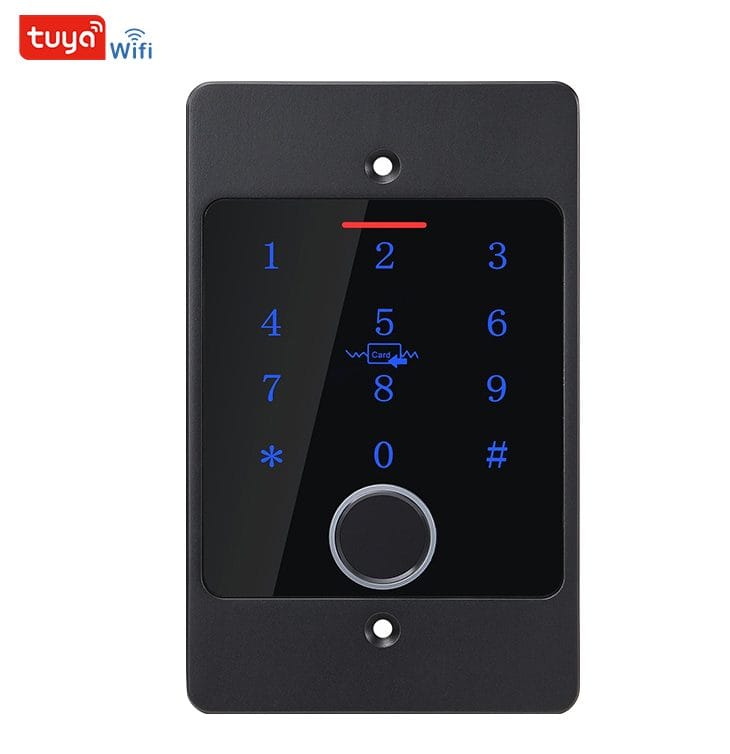

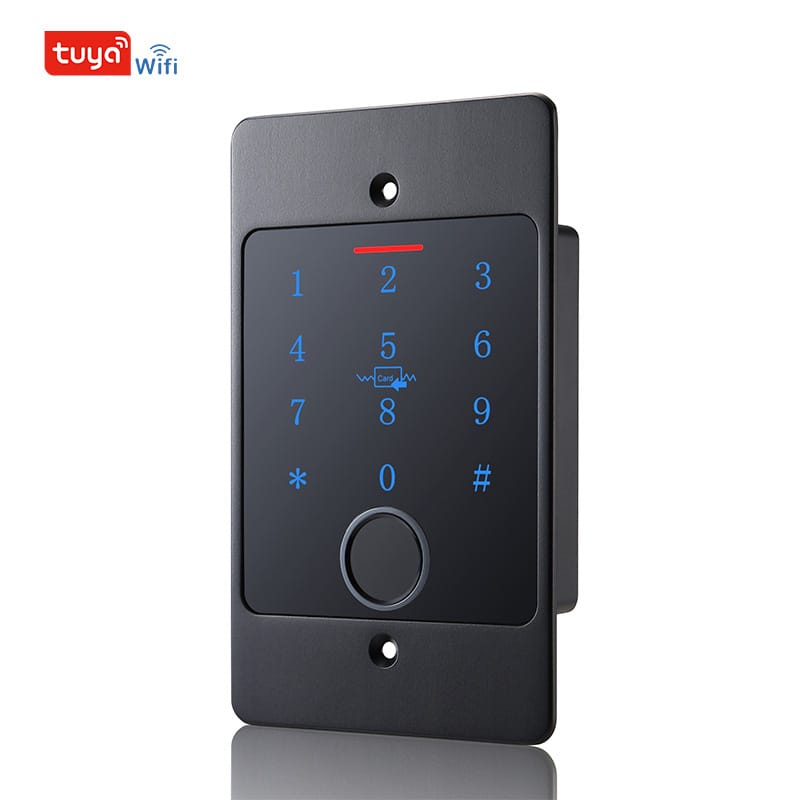

This new generation of Tuya WiFi smartphone management fingerprint access control keypad/reader has attractive appearance.The metal case is anti-vandal and anti-explosion.Waterproof IP66 for indoor & outdoor installation.Supports multiple ways of authentication: fingerprint/card/PIN code/multi-user/temporary guest user.Also supports OTA online update.
Parameters
| Model | SF8-T |
| Housing | Metal case |
| Waterproof | IP66 |
| Power | DC12V±25% |
| Input | EM 125KHz Wiegand 26丨Mifare 13.56MHz （Mobile NFC) Wiegand 26-44,56,58bit丨4-6 digits PIN |
| Output |
EM Wiegand 26-44bit丨Mifare Wiegand 26-44,56,58bit PIN code 4 bit丨8 bit丨virtual card number |
| User Capacity | 100 fingerprint users + 10000 card/pin code users |
| Environmental | Temperature:-20℃~﹢60℃ |
| Humidity:10%-99% | |
| Dimension | 115*70*17mm |
| Weight | 0.55kg |
Main Features

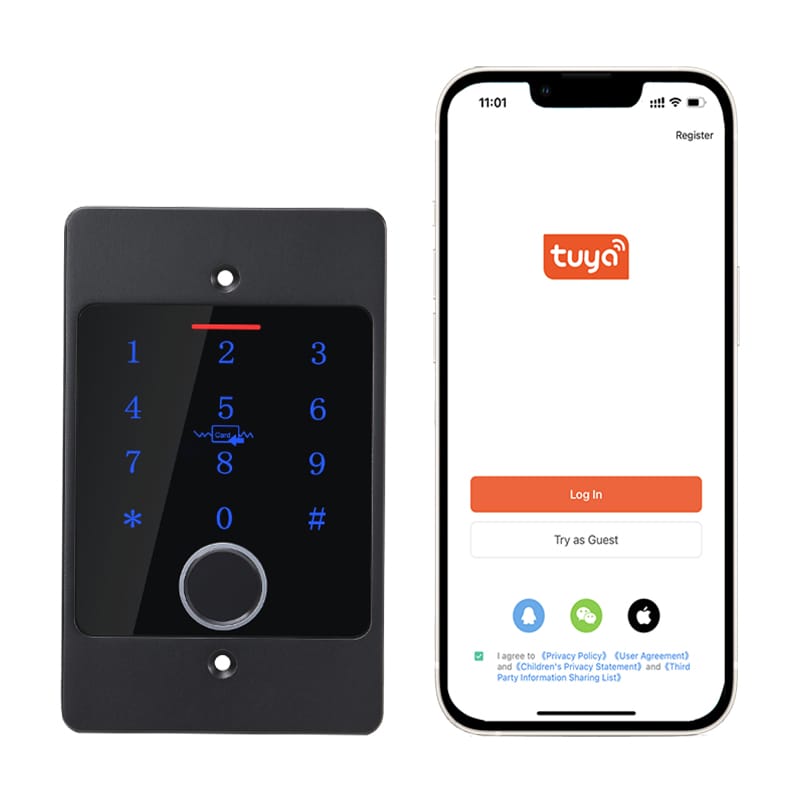

Smartphone management丨open remotely丨add/delete users by smartphone丨OTA online update
door status remote monitoring丨2 anti-duress users丨10 temporary guest users(1-9 opening times)丨Interlock
2-9 multi-users authentication丨Sound & light can be set丨Card and PIN code user data can be copied丨Wiegand reader mode
Model
- SF8-T EM 125KHz
- SF8-T MF 13.56MHz (Mobile NFC/NFC 213-216)
Color option
- Black housing
- White housing (please check with the sales consultant if interested)
