Brief Introduction

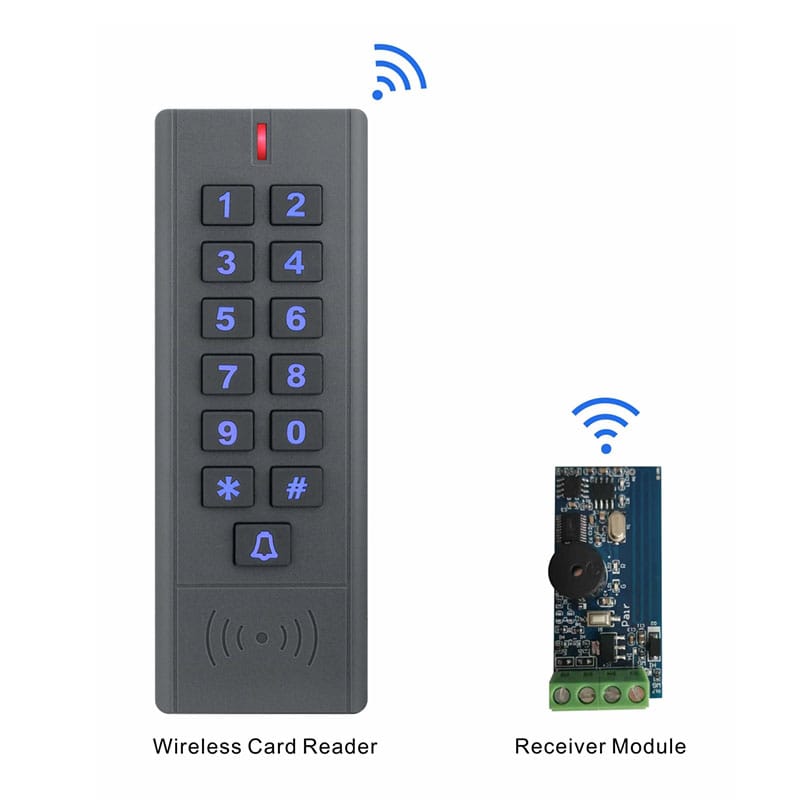

This new generation of ABS plastic wireless keypad reader conforms to waterproof IP66.It include an outdoor wireless keypad reader and a receiver module.It can wirelessly transmit user data from the controller without wiring.And the receiver is suitable for any controller with wiegand protocol.
Parameter
| Model | WR9 |
| Housing | Thickened ABS |
| Waterproof | IP66 |
| Power | Wireless reader: 3pcs AAA batteries丨Receiver: DC12V±20% |
| Input | EM125KHz 丨PIN Code |
| Output | Wiegand 26丨4 bit or 8 bit丨Virtual card number |
| Communication distance | 100M Maximum |
| Environmental | Temperature: -40℃~﹢60℃ |
| Humidity: 10%-98%RH | |
| Dimension | 134*48*25mm |
| Weight | 0.6kg |
Main Features
Adopt 433MHz丨TEA+ rolling code encryption algorithm丨Built-in wireless doorbell and external doorbell is optional
One receiver can be equipped with 5 outdoor wireless readers丨No wiring
Model
- WR9-E EM card 125KHz
Diagram
