Brife introduction

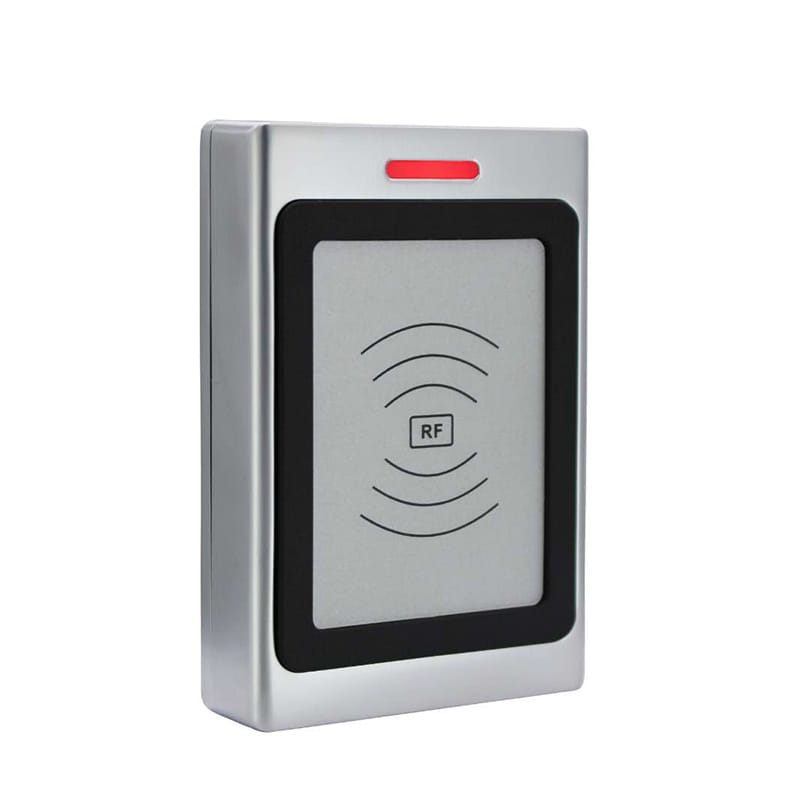

This new generation of metal rugged rfid card reader conforms to waterproof IP67.The zinc alloy housing is anti-vandal and anti-explosion.It can be integrated into any other system with the Wiegand protocol output.
Parameter
| Model | WR7 |
| Housing | Zinc alloy |
| Waterproof | IP67 |
| Power | Wide range DC10-24V |
| Input | EM125KHz 丨Mifare 13.56MHz (UID 4bytes,7bytes Plus ) |
| Output | Wiegand protocol |
| Mifare type | Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare class |
| Environmental | Temperature: -40℃~﹢70℃ |
| Humidity: 10%-98%RH | |
| Dimension | 110*76*22mm |
| Weight | 0.55kg |
Wiegand formats customization
The factory default is Wiegand 26 (EM) / Wiegand 34 (Mifare).
The other formats can be customized.
Model
- WR7-E EM 125KHz
- WR7-M Mifare 13.56MHz (UID 4 bytes,7 bytes Plus)丨NFC 213-216丨Mobile NFC
- WR7-DM EM & Mifare
