Brief introduction

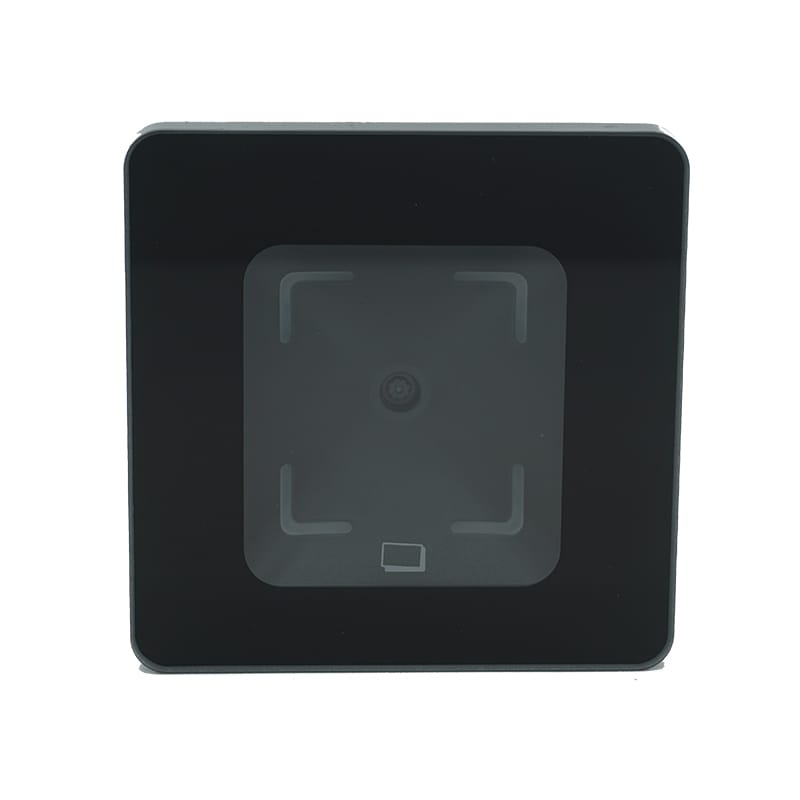

This IP rated code scanner conforms to waterproof IP66.It supports outside installation.And it is not only a QR code scanning reader but also a barcode scanner and IC card reader.It supports multiple interfaces which can meet your needs of different projects.It has the advantage of quick scanning response of 100ms per time and accuracy.
Parameter
| Model | S-M350 |
| Description | QR code & IC card |
| Power | Wiegand/TTL/RS232/RS485: DC5-15V丨Ethernet: DC12-24V |
| Input | QR code丨one-dimensional code丨Mobile NFC丨Mifare 13.56Mhz |
| Communication way | Wiegand丨RS485丨RS232丨TTL丨Ethernet |
| Reading direction | 360° |
| Reading speed | 100ms per time |
| IP rated | Waterproof IP66 |
| Recognizable code size | 640×480 CMOS |
| Environmental | Temperature: -20℃~﹢70℃ |
| Humidity: 5%-95%RH | |
| Dimension | 88.3*88.3*28.35mm |
| Weight | 0.35kg |
Development interfaces
Supports free configuration tool and SDK
