Brief introduction

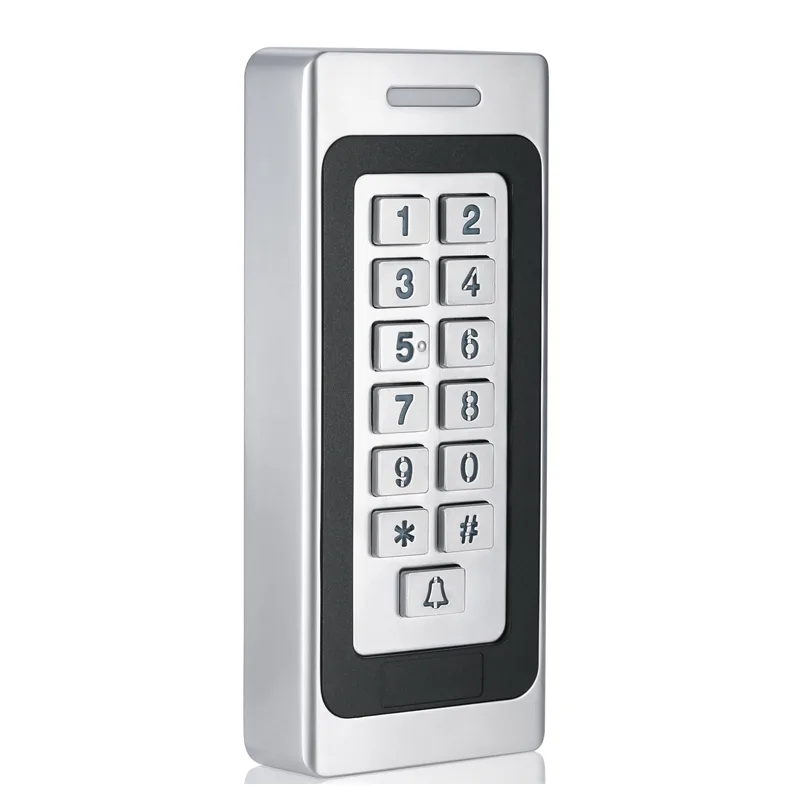

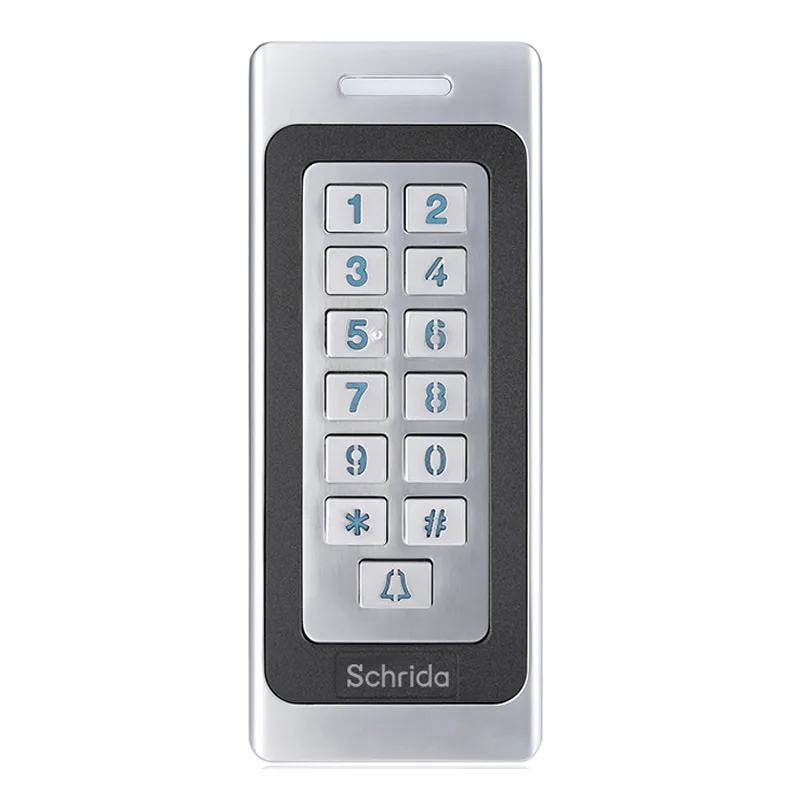

This new generation of metal proximity keypad reader conforms to waterproof IP67.The zinc alloy housing is anti-vandal and anti-explosion.It can be integrated into any other systems with the Wiegand protocol output.The users can change the Wiegand formats with the keypad.
Parameter
| Model | SR6 |
| Housing | Zinc alloy |
| Waterproof | IP67 |
| Power | Wide range DC10-24V |
| Input | EM125KHz 丨Mifare 13.56MHz (UID 4bytes,7bytes Plus)丨PIN Code |
| Output | Wiegand protocol丨4 bit or 8 bit丨Virtual card number |
| Mifare type | Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare class |
| Environmental | Temperature: -40℃~﹢70℃ |
| Humidity: 10%-98%RH | |
| Dimension | 131*54*20mm |
| Weight | 0.55kg |
Wiegand formats setting
The users can change the Wiegand formats with the keypad
EM: Wiegand 26-44bit
Mifare: Wiegand 26-44bit,47,56,58,64,66bit
Model
- SR6-E EM 125KHz
- SR6-M Mifare 13.56MHz （UID 4bytes,7bytes Plus)丨NFC 213-216丨Mobile NFC
