Brief Introduction

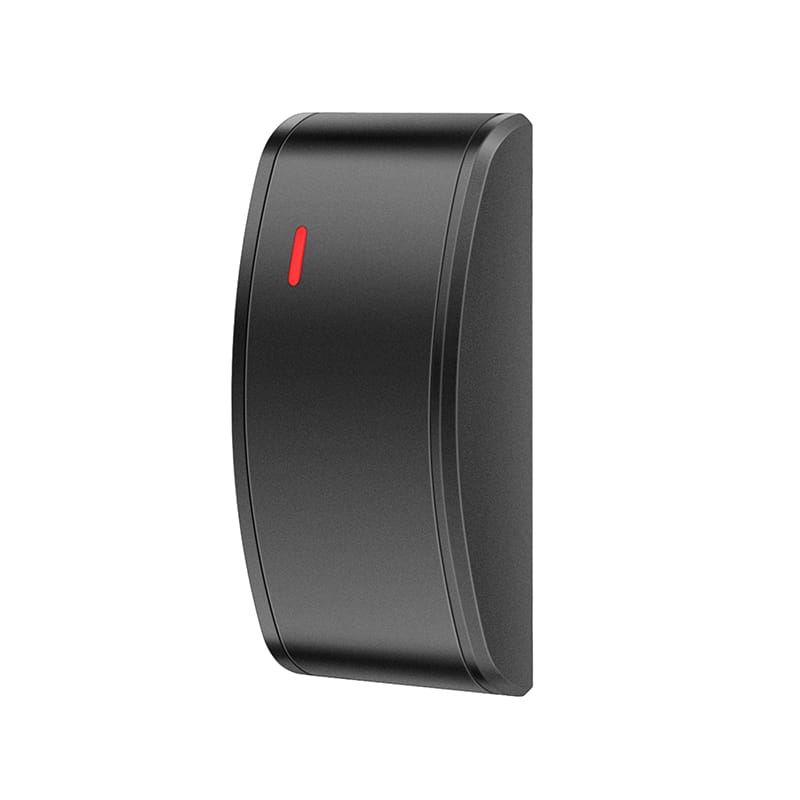

This new generation of mini small size Wiegand card reader conforms to waterproof IP67.It has plastic ABS housing which is classic and cost-effective.The users can change the Wiegand output formats by themselves with any kind of keypads.It can be easily integrated into other systems and meet your needs of different projects.
Parameter
| Model | SR1 |
| Housing | Plastic ABS |
| Waterproof | IP67 |
| Power | Wide range DC10-24V |
| Input | EM 125KHz丨 Mifare 13.56MHz (UID 4bytes,7bytes Plus) Mobile NFC丨NFC 213-216 |
| Output | Factory default Wiegand 26 (EM) or 34 (Mifare) |
| Mifare type | Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare class, S50, S70 |
| Environmental | Temperature: -40℃~﹢60℃ |
| Humidity: 10%-98%RH | |

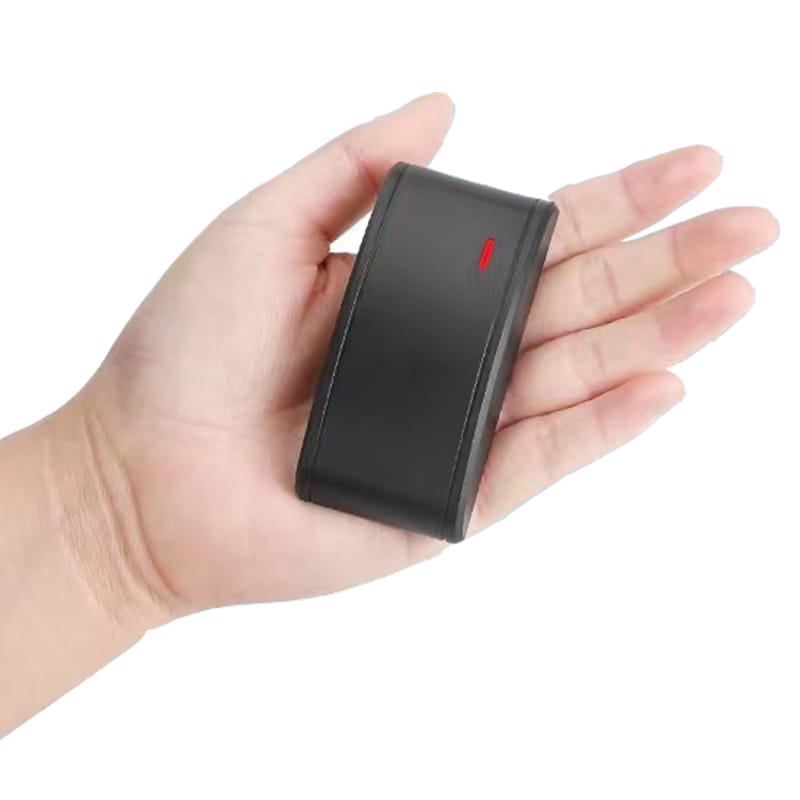

| Dimension | 83*42*17mm |
| Weight | 0.25kg |
Wiegand formats setting
The users can change the Wiegand formats with any kind of external keypads which support 4bit / 8bit key output.
EM: Wiegand 26-44bit
Mifare: Wiegand 26-44bit,47,56,58,64,66bit
Model
- SR1-E EM 125KHz
- SR1-M Mifare 13.56MHz (UID 4 bytes,7 bytes Plus)丨NFC 213-216丨Mobile NFC
- SR1-DM EM & Mifare 125KHz & 13.56MHz
