Brief Introduction

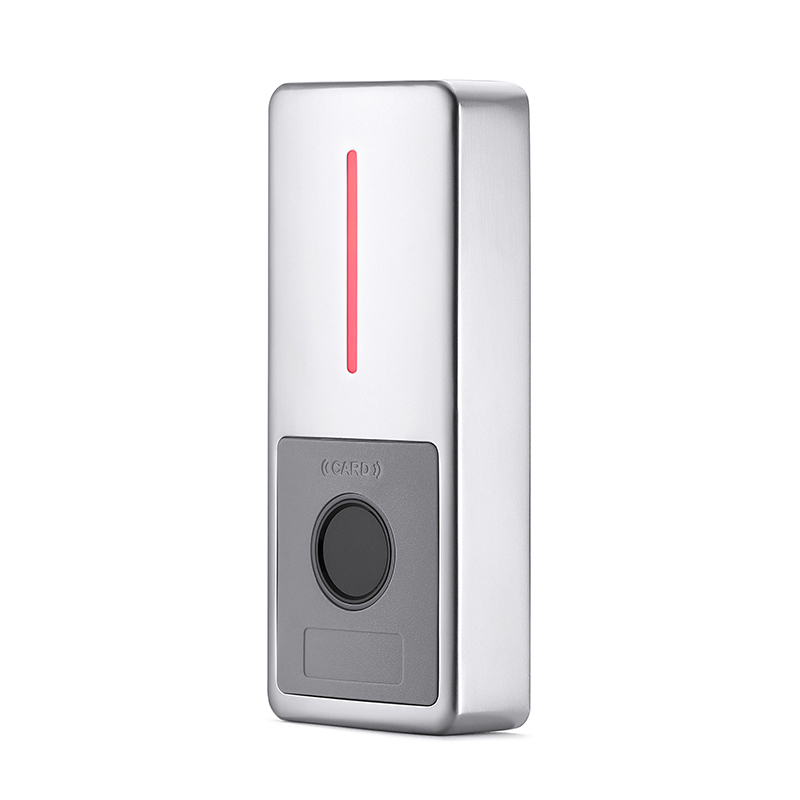

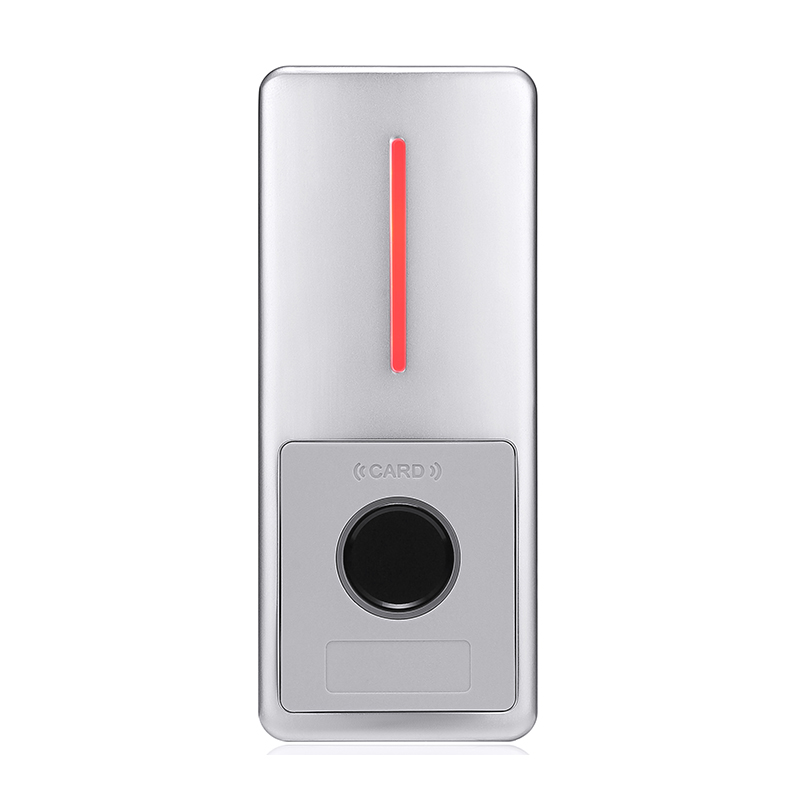

This new generation tuya app remote management WiFi fingerprint access control/reader has attractive appearance of high-end paint metal case which is anti-vandal and anti-explosion.Waterproof IP66 for outdoor installation.Support multiple ways of authentication:fingerprint/card/multi-users/smart phone app settings and control.
Parameters
| Model | SF7-T |
| Housing | Metal case, the surface of black paint |
| Waterproof | IP66 |
| Power | DC12V±25% |
| Input | EM 125Khz Wiegand 26丨Mifare 13.56Mhz （Mobile NFC) Wiegand 26-44,56,58 |
| Output | EM Wiegand 26丨Mifare Wiegand 26-44,56,58 |
| User Capacity | 200 fingerprint users丨400 card users |
| Environmental | Temperature:-20℃~﹢60℃ |
| Humidity:10%-99% | |
| Dimension | φ63×16mm |
| Weight | 0.35kg |
Featured functions
Users management by app丨open remotely by app丨set the open time
door status check with app丨multiple authentication ways丨query the open records by app
data transmisstion of card user丨visitor users
Model
- SF7-T EM 125Khz
- SF7-T MF 13.56Mhz (Mobile NFC)
