Brief Introduction

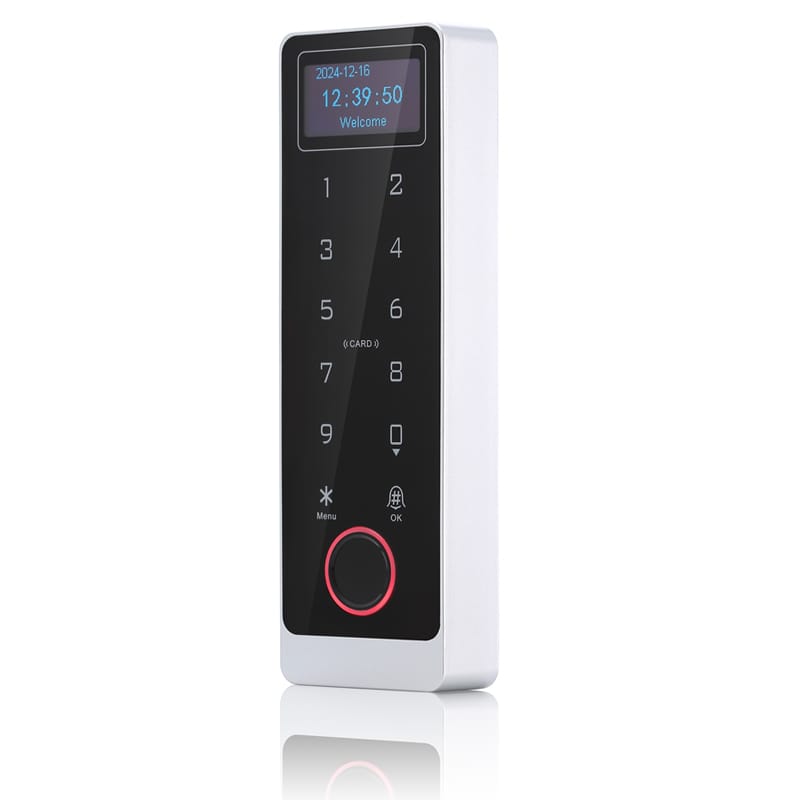

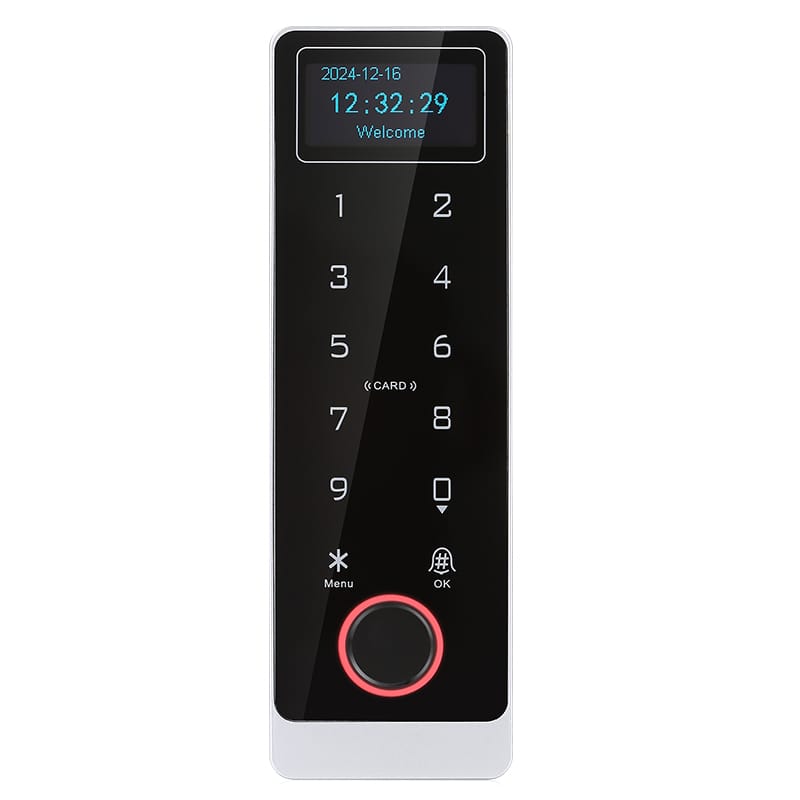

This new generation of OLED screen standalone fingerprint access control keypad reader comfors to waterproof IP66.Thickened plastic ABS case, classic & durable.The visual operation menu is easy for user operation and query the door opening records.It supports multiple authentication ways: fingerprint,card,pin code,2-9 multi-user.
Parameters
Model | SHD1 |
Housing | Thickened plastic ABS case |
Waterproof | IP66 |
Power | DC10-24V |
Input | EM 125KHz丨Mifare 13.56MHz (Mobile NFC) 丨Wiegand 26-58 bit |
Wiegand 26-58 Bit丨4bit,8bit,virtual card number | |
User Capacity | 100 or 500 fingerprint users & 5000 card pin users (include 10 anti-duress users) |
Environmental | Temperature:-20℃~﹢60℃ |
Humidity:10%-99% | |
Dimension | 143*45*20mm |
Weight | 0.5kg |
Featured functions
OLED screen visual operation menu丨Query the open records thourgh screen display
Multiple authentication ways丨Door magnetic detection丨2-9 multi-user authentication
Modify the user information if lose the card or forget the code丨Wiegand reader mode
Wiegand output formats can be set丨Keyboard backlight,LED indicator,buzzer sound can be set
Copy & transfer the user card/code data to another device丨Set the unlocking time in access mode
Model
- SHD1-EM 125KHz
- SHD1-M 13.56MHz (Mobile NFC)
- SHD1-DM EM&Mifare 125KHz & 13.56MHz
