Brief introduction
This new arrival of HD IPS touch screen QR code scanner is not only a QR code scanning reader but also a barcode scanner and IC card reader.It can meet your needs of multiple ways authentication of QR Code/barcode/touch screen virtual PIN code/bluetooth/Mifare 13.56MHz card.Specially designed for access control and turnstile.
Parameter
| Model | S-DW200 |
| Description | QR code & IC card & PIn code & Bluetooth |
| Power | Wide Range 9-15V |
| Input | QR code丨one-dimensional code丨Mobile NFC丨Mifare 13.56Mhz丨PIN code |
| Communication way | RS485丨100M Ethernet port |
| Card type | M1 card, CPU card ISO14443 A card, ISO14443 B card… |
| Reading distance | 15milQR Code:22.5mm~129.06mm |
| Reading speed | 100ms per time |
| QR code resolution | 800*600 |
| Touch screen | Dimension: 3.33inch |
| Resolution: 320*480 | |
| Bluetooth version | BLE 5.1 |
| PIN Code | Tocuh screen virtual key code |
Main Features
- 3.33 inch 320×480 resolution IPS Touch screen.Supports user-defined screen display

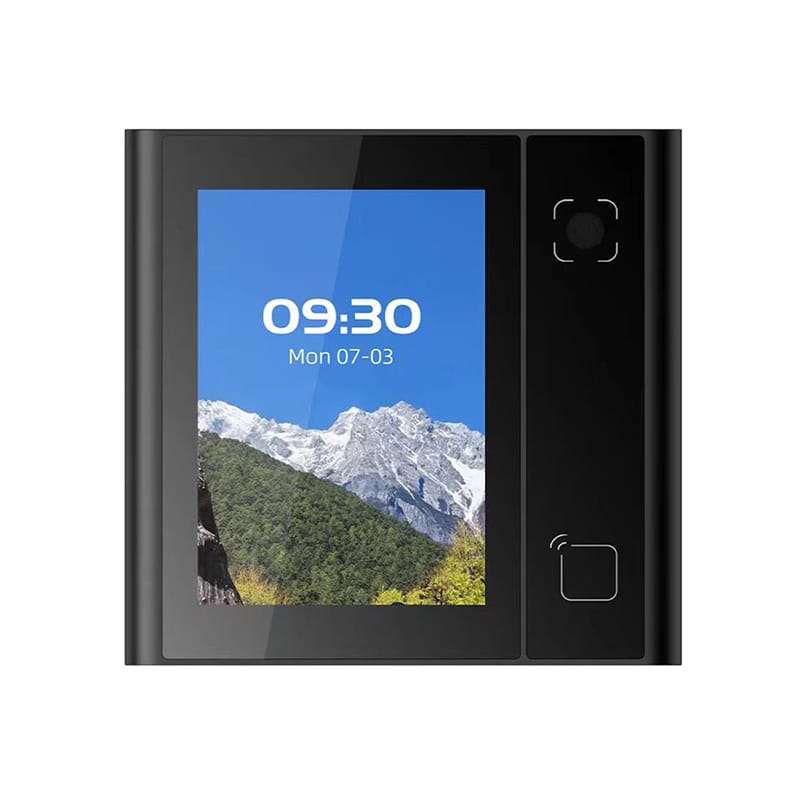

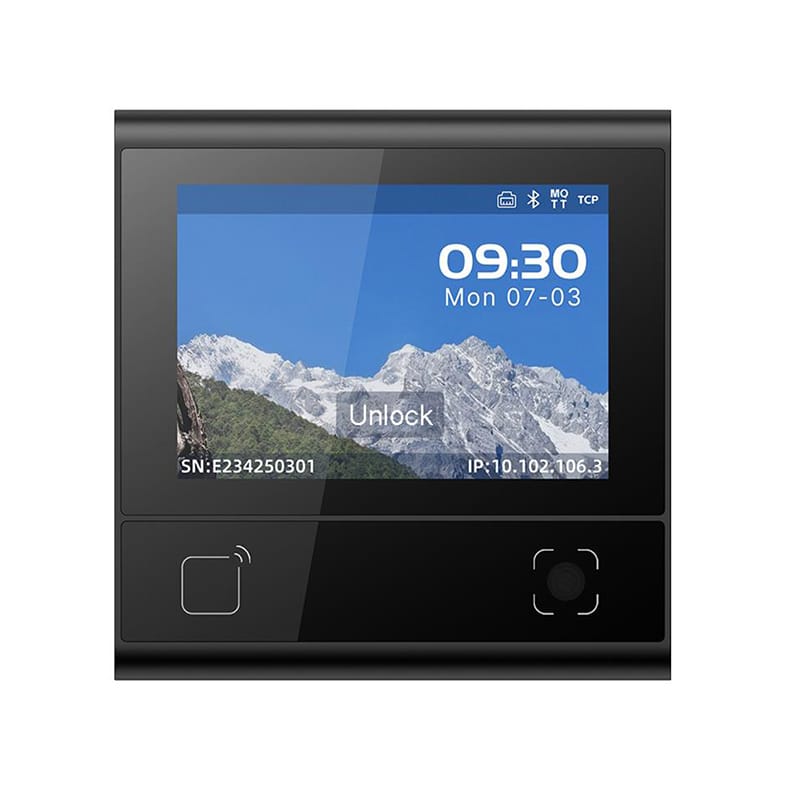

- Supports screen horizontal display and vertical display
- Multiple authentication ways: QR code / Barcode / Touch screen virtual key code / Bluetooth / Mifare card 13.56MHz
- Supports reading & writing the sector of Mifare one card and CPU card
- Image sensor : 480,000 pixel CMOS / Maximum resolution 800×600
- Fast reading speed 100ms per time and high accuracy. Supports multiple screen codes such as OLED screen code
- Communication interface: RS485, 100 Mbps network interface , built-in relay , door contact…
- Supports bluetooth BLE 5.1
- Specially designed for door access control and turnstile
